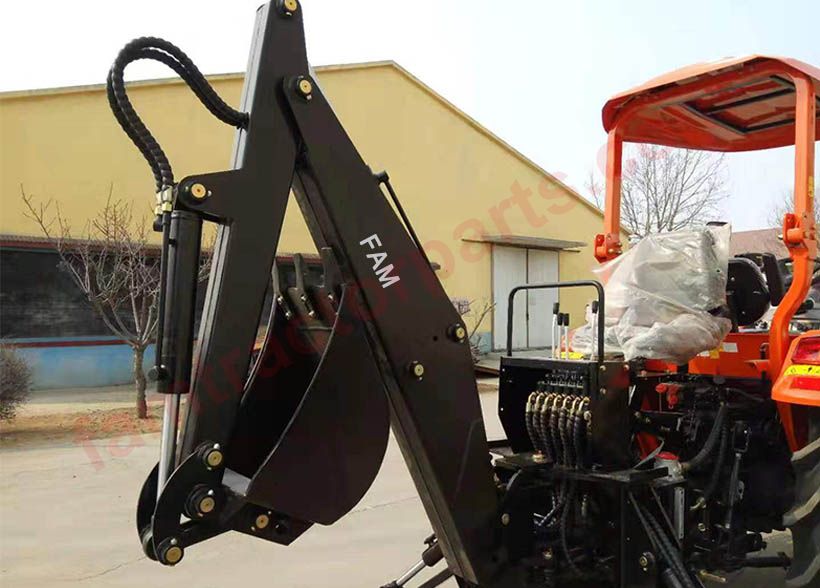

| Backhoe | |||
| Backhoe Model | LW-5 | LW-6 | LW-7 |
| Matching Trctor (HP) | 15-25 | 20-35 | 30-55 |
| Max. Digging Depth (mm) | 1650 | 2000 | 2400 |
| Max. Unloading Height (mm) | 1530 | 1860 | 2050 |
| Max. Digging Height (mm) | 2600 | 2970 | 3210 |
| Working Radius (mm) | 2300 | 2700 | 3140 |
| Ground Clearance (mm) | 450 | ||
| Min. Transporting Width(mm) | 1150 | 1700 | |
| Max. Width of Supporting Legs (mm) | 2100 | 2200 | |
| Bucket Width (in.) | 14 | 16 | |
| Bucket Capacity (m3) | 0.03 | 0.05 | |
| Weight (Kg) | 360 | 550 | 560 |
| Hydraulic System, PTO | 6/8/21 Splines(Option) | ||
| Thumb Grah | Option | ||
