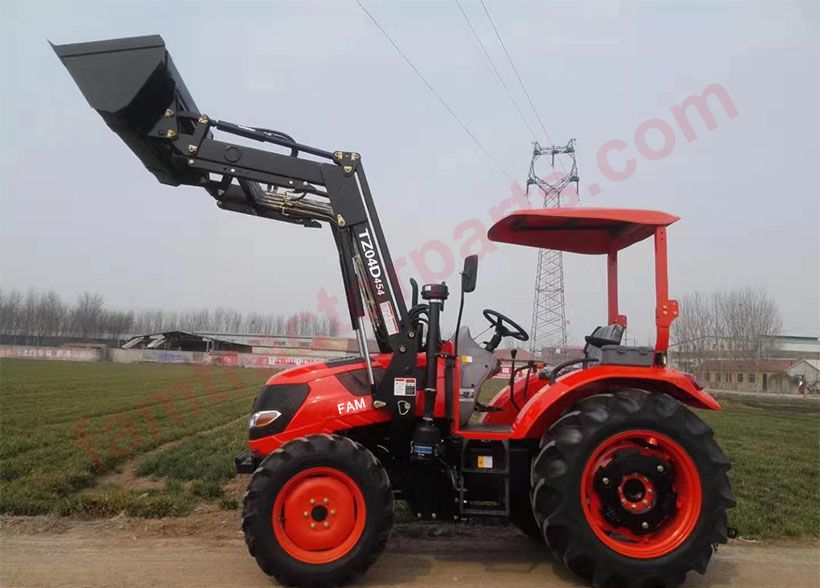

| Front End Loader | |||
| Loader Model | TZ02D | TZ03D | TZ04D |
| Matching Tractor(HP) | 15-25 | 20-40 | 30-55 |
| Max. Lifting Height at Implement Pivot(mm) | 2350 | 2550 | 2740 |
| Dumpling Height(mm) | 1730 | 1840 | 2100 |
| Overloading Height(mm) | 2170 | 2370 | 2560 |
| Dumpling Distance(mm) | 370 | 500 | 600 |
| Ground Clearance at Arm Pivot Pin(mm) | 1120 | 1200 | 1360 |
| Max. Tip in Angle(Degree) | 48 | 48 | 48 |
| Tip out Angle(Degree) | 52 | 58 | 58 |
| Crowd Angle at Lowered Lift Arm (Degree) | 140 | 135 | 135 |
| Digging Depth(mm) | 90 | 100 | 100 |
| Lifting Force at Implement Pivot Pin(Kg) | 1820/1184 | 2224/1474 | 2144/1321 |
| Crapple Bucket | |||
| Model | 04DG150 | ||
| Width(cm) | 150 | ||
| Max. Opening Size (cm) | 90 | ||
| Number of Grab Tines | 3 | ||
