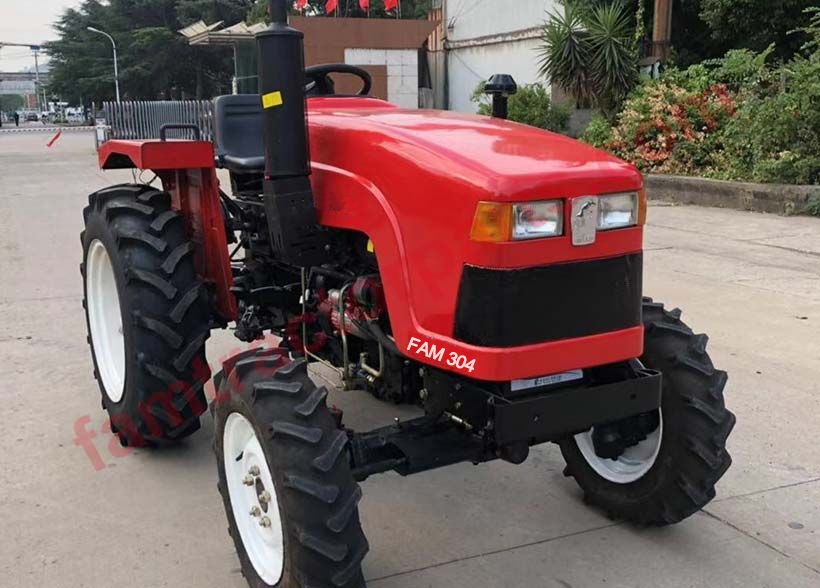

FAM 30hp-35hp wheeled tractor with 30hp, more than 35hp power level, the power level has agricultural basic type, transport type, four wheel drive type and other models. This series of products have the advantages of advanced design, reasonable structure, water and drought and concurrent use, excellent performance, flexible operation, convenient maintenance, high efficiency and low consumption, reliable and durable and so on. And the same series of products are very versatile. A number of field operations can be completed with the corresponding farm implements. Such as ploughing, harrowing, rotary tillage, sowing, fertilization, field management, harvesting etc.. Can complete a number of fixed operations, such as irrigation, power generation, threshing, agricultural and sideline products processing, transportation, and ditching, digging, loading, road maintenance, forest management and other work, is the ideal model to realize the paddy fields, hills, mountains and pastoral areas, vegetables, orchards and other agricultural mechanization.
This series of tractors can be based on user needs the optional dual clutch, hydraulic steering, rear wheel sliding distance stepless adjustable device, high tire, paddy field trailer air brake device and shock absorbing seat.
Main Technical Specifications of FAM 30HP series Tractors
Type | FAM300 | FAM304 |
Engine | ||
Model | SL2105T | |
Cylinders Numbers-Bore×Storke | 2-105×110 | |
Rated Output(Kw/HP) | 22/30 | |
Max.Tourque(N.M) | 110.1 | |
Rated Speed(r/min) | 2200 | |
Method of cooling | Closed and forced water circulation | |
Fuel Tank Capacity(L) | 36 | |
Transmission Box & Steering System | ||
Gear Number(Forward+Reverse) | 8 + 2 | 8 + 2 |
Speed(km/h) | 2.14 ~ 27.28 | 1.67 ~ 21.30 |
Clutch | Single Stage | Single Stage |
Steering System | Mechnical | |
Three-Point Suspention & Power-Take-Off | ||
Method of Sensing | Top Link | |
Max.Lift Capacity(N) | 7850 | |
Category Type | Category Ⅰ | |
Opening Pressure of Relief Valve (Mpa) | 15.7 | |
PTO Shaft Type | Non-independent | Non-independent |
PTO Shaft Speed(r/min) | 540,1000 | |
Dimension of Spline | 8D-29.4-0.280×38-0.100×6-0.100(6D-34.79±0.06×28.91 - 0.15×8.69 - 0.16) | |
Travel Devices & Running System | ||
Rated Tractive Force(N) | 6660 | 7840 |
Wheel Base(mm) | 1570 | 1630 |
Front Wheel Tread(mm) | 1100Adjustable | 1160 |
Rear Wheel Tread(mm) | 1100Adjustable | |
Front Wheel Tire | 5.00 ~ 15 | 6.50 ~ 16 |
Rear Wheel Tire | 11.2 ~ 24 | |
Driving Type | Two-Wheel Drive | Four-Wheel Drive |
