FAM 40 type wheeled tractor has two kinds of basic models FAM400 and FAM404. FAM40 tractor products with advanced design, reasonable structure, dual purpose, excellent performance, flexible operation, convenient maintenance, low efficient, reliable and durable. A number of field operations can be completed with the corresponding farm implements. Such as ploughing, harrowing, rotary tillage, sowing, fertilization, field management, harvesting etc. Can complete a number of fixed operations, such as irrigation, power generation, threshing, agricultural and sideline products processing, transportation, and ditching, digging, loading, road maintenance, forest management and other work, is the ideal model to realize the paddy fields, hills, mountains and pastoral areas, vegetables, orchards and other agricultural mechanization.
FAM40 tractor according to user needs the optional dual clutch, hydraulic steering, rear wheel sliding distance stepless adjustable device, high tire, paddy field trailer air brake device and shock absorbing seat.
We've shipped for you!
As a professional farm machinery exporter, we will win your trust with our safety factor speed of delivery, Enterprises Credit, and product quality.

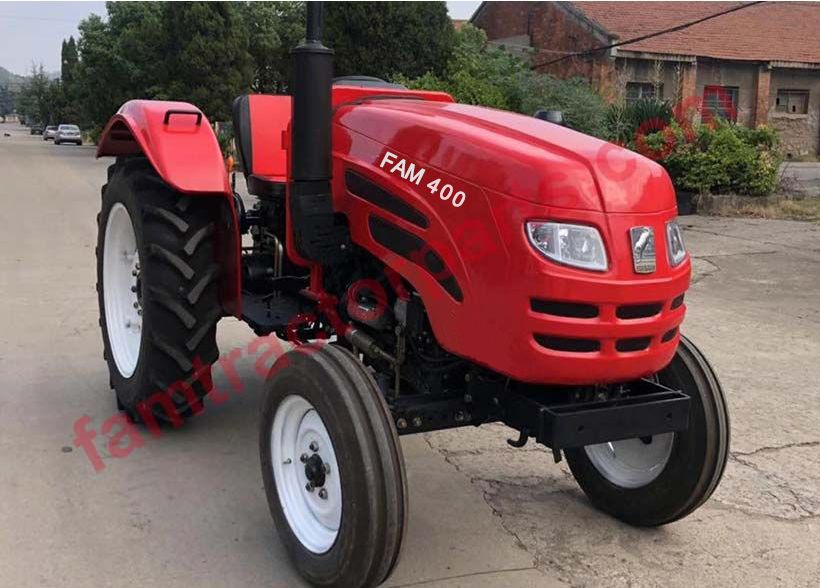

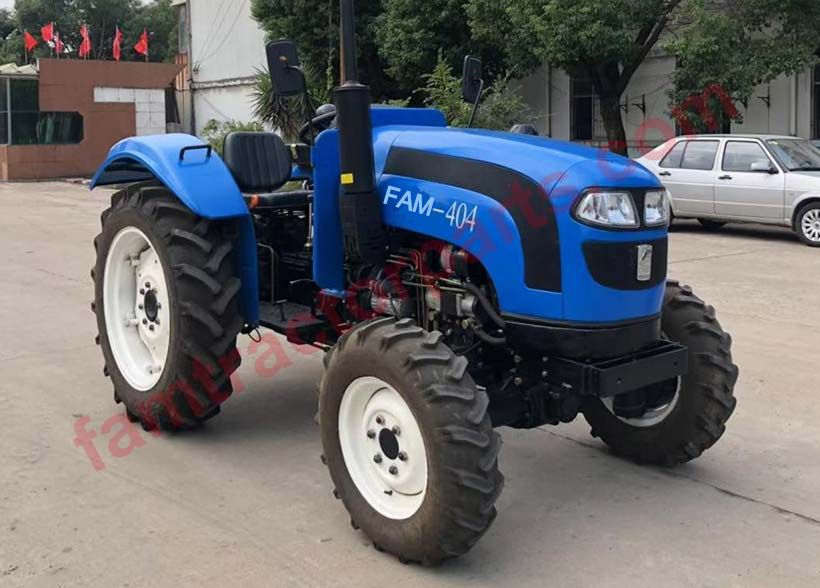

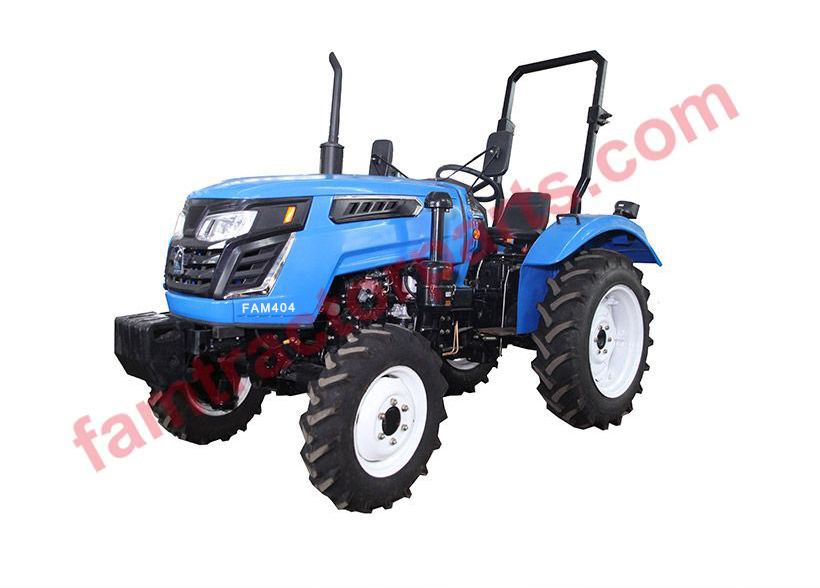

Main Technical Specifications of FAM 40HP series Tractors
| Type | FAM400 | FAM404 |
| Engine | ||
| Model | 4D27T31/403 | |
| Cylinders Numbers-Bore×Storke | 4-93×105(3-105×110) | |
| Rated Output(Kw/HP) | 29.4/40 | |
| Max.Tourque(N.M) | 171.7 | |
| Rated Speed(r/min) | 2200 | |
| Method of cooling | Closed and forced water circulation | |
| Fuel Tank Capacity(L) | 40 | |
| Transmission Box & Steering System | ||
| Gear Number(Forward+Reverse) | 8+2(With Creeper 16+4) | |
| Speed(km/h) | 1.86 ～ 23.72 | |
| Clutch | Dry single-Action or double-action | |
| Steering System | Recirculating-ball type or fully hydraulic steering | |
| Brake Type | Double Disk,Wet type | |
| Three-Point Suspention & Power-Take-Off | ||
| Method of Sensing | Top Link | |
| Max.Lift Capacity(N) | 8530 | |
| Category Type | Category Ⅰ | |
| Opening Pressure of Relief Valve (Mpa) | 15.7 | |
| PTO Shaft Type | Not independent or Semi independent | |
| PTO Shaft Speed(r/min) | 540,750,1000(optional two speeds) | |
| Dimension of Spline | -0.09 | |
| 6D-34.79±0.06×28.91±0.05×8.69-0.1 | ||
| Travel Devices & Running System | ||
| Rated Tractive Force(N) | 8500 | 11000 |
| Wheel Base(mm) | 1760(1690) | 1830(1760) |
| Front Wheel Tread(mm) | 1.1 ～ 1.5 | 1.16 |
| Rear Wheel Tread(mm) | 1.2 ～ 1.6 | |
| Front Wheel Tire | 6.00 ～ 16 | 7.50 ～ 16 |
| Rear Wheel Tire | 11.2 ～ 28 | 11.2 ～ 28 |
