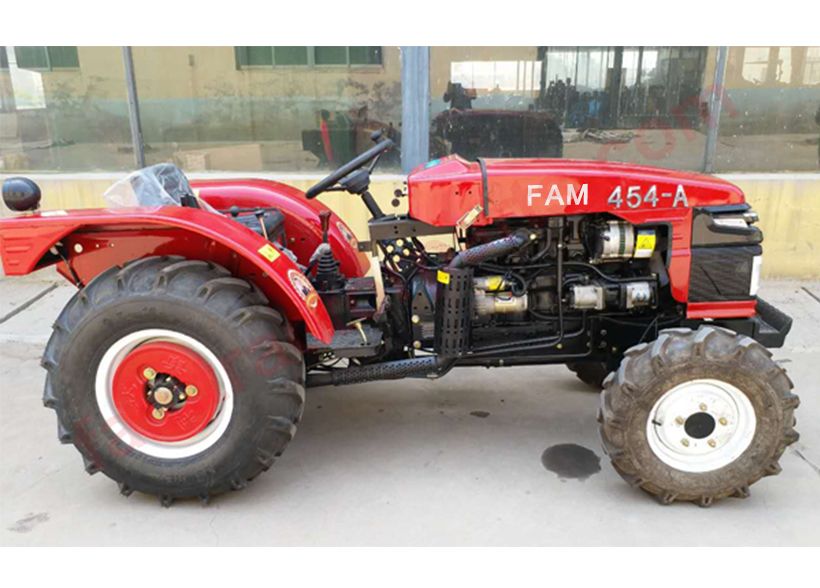

| Model | FAM-454 | Type | 4WD |
| Overall dimensions (mm) | 3250×1250×1260 | Wheel Base (mm) | 1725 |
| Front Tread (mm) | 960 | Rear Tread (mm) | 900~1020 |
| Min. Ground Clearance | 210 | Min. Operation Mass (kg) | 1440 |
| Front Ballast（kg） | 42 | Rear Wheel Ballast(kg) | 56 |
| PTO Power (kW) | 28.12 | Max. Drawbar pull (kN) | 15.3kN |
| Starting Method | Electric starting | No.of gears | 8F+2R |
| Theoretical Speed (km/h) | F:1.95~29.69, R: 2.56~11.85 | Engine Model | JDM490T5 |
| Type | 4-stroke, vertical | Air Intake Type | Natural |
| Cylinders | 4 | Bore X Stroke (mm) | 90X105 |
| Displacement (L) | 2.67 | Compression ratio | 18:1 |
| Rated power (kW) | 34 | Rated Speed (rpm) | 2400 |
| Cooling type | Water circulating cooling type | Fuel tank capacity (L) | 45 |
| Steering type | Full hydraulic steering | Braking system | Shoe brake |
| Clutch | dry, single plate, constant mesh | Transmission Box | (4+1)x2Component type |
| Gearshift | Engaging Sleeve shifting | Central Drive | helical bevel gear |
| Differential | closed planet pinion | Final Drive | Built - in, single stage straight gear cylindrical gear |
| Frame type | No frame | Front Tyre Size | 6.00-12 |
| Rear Tyre Size | 9.5-16 | Front Tyre Pressure (kPa) | 125/125 |
| Rear Tyre Pressure (kPa) | 125/125 | Three Point Linkage Type | Rear three point suspension |
| Hydraulic lift type | Semi-seperated | Tillage depth control | Position and draft control |
| methodHydraulic lift pump | gear pump CBQ-F314 | Hydraulic output | quick action connector |
| PTO Type | Type I, rear mounted, semi- | PTO Splines Numbers | independent 6 |
| PTO Rev.(r/min) | 35mm | Outer Dia. of PTO Spline（mm） | 540/720 |
| Max. Lifting Force (kN) | 7.45 |
