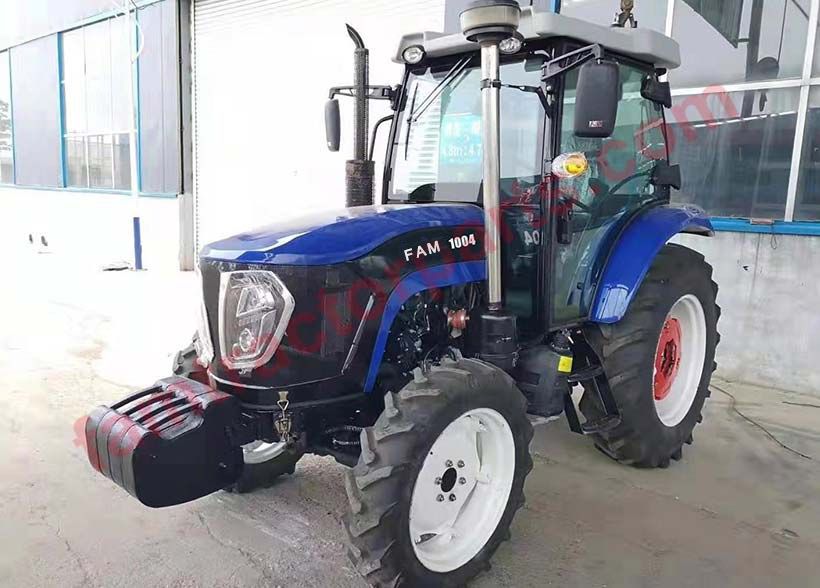

| Model | FAM1004 |
| Type | 4 WD(four-wheel drive) |
| Overall dimensions(mm) | 4060×1660×2800(with cabin） 4060×1660×2550(with frame） |
| Wheel Base(mm) | 2100 |
| Front Tread(mm) | 1270 |
| Rear Tread(mm) | 1310 |
| Min. Ground Clearance | 360 |
| Min.Operation Mass (kg) | 3030(with cabin） 2830(with frame） |
| Front Ballast（kg） | 198 |
| Rear Wheel Ballast(kg) | 540 |
| PTO Power(kW) | |
| Max. Drawbar pull(kN) | |
| Starting Method | Electric starting |
| No.of gears | 12F+12R |
| Theoretical Speed(km/h) | |
| Engine Model | 4D32RT30/1004 |
| Type | Direct line, direct injection, water cooling, four stroke |
| Air Intake Type | Inhale under pressure |
| Cylinders | 4 |
| Bore X Stroke(mm) | 98X115 |
| Rated power(kW) | 73.5 |
| Rated Speed(r/min) | 2400 |
| Cooling type | Cyclic water cooling |
| Fuel tank capacity (L) | 90 |
| Steering type | Full hydraulic steering |
| Braking system | Shoe brake |
| Clutch | Double, dry, double. |
| Transmission Box | 4x3x(1+1)Component type |
| Gearshift | Mechanical shift with stage |
| Central Drive | helical bevel gear |
| Differential | closed planet pinion |
| Final Drive | Closed, planetary gear. |
| Front Tyre Size | 8.30-24 |
| Rear Tyre Size | 14.9-30 |
| Front Tyre Pressure (kPa) | 120-150 |
| Rear Tyre Pressure (kPa) | 120-150 |
| Three Point Linkage Type | Rear three point suspension |
| Hydraulic lift type | Semi-seperated， |
| Max. Lifting Force (kN) | 17.6 |
