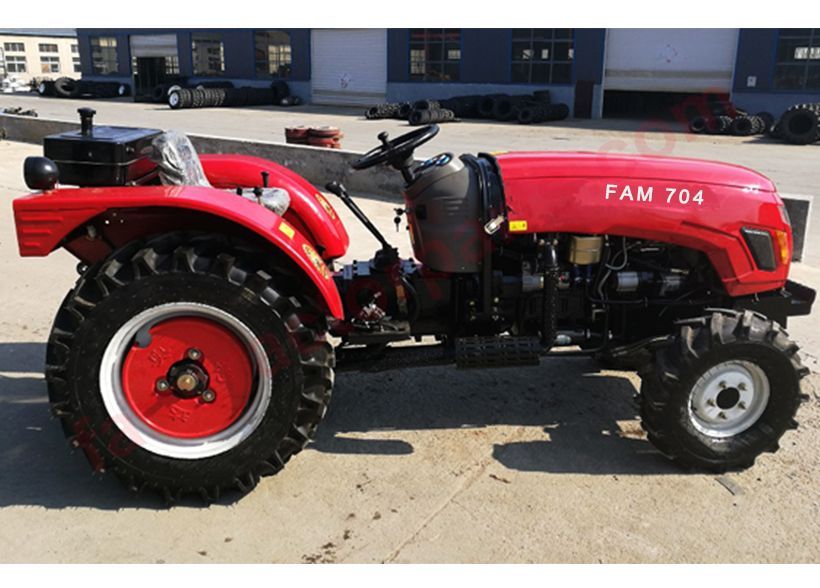

| Model | FAM704 | Type | 4WD |
| Overall dimensions (mm) | 3800×1620×2200 | Wheel Base (mm) | 2100 |
| Front Tread (mm) | 1260 | Rear Tread (mm) | 1280 |
| Min. Ground Clearance | 330 | Min. Operation Mass (kg) | 2500 |
| Front Ballast（kg） | 144 | Rear Wheel Ballast(kg) | 360 |
| PTO Power (kW) | 43.8 | Max. Drawbar pull (kN) | 16.5 |
| Starting Method | Electric starting | No.of gears | 8F+8R |
| Theoretical Speed (km/h) | F：2.61-33.59 R2.29-29.44 | Engine Model | QC4108T70 |
| Type | 4-stroke, vertical | Air Intake Type | Natural |
| Cylinders | 4 | Bore X Stroke (mm) | 105*118 |
| Displacement (L) | 7.41 | Compression ratio | 18:1 |
| Rated power (kW) | 51.5 | Rated Speed (rpm) | 2400 |
| Cooling type | Water circulating cooling type | Fuel tank capacity (L) | 44.5 |
| Steering type | Full hydraulic steering | Braking system | Shoe brake |
| Clutch | Single, dry and double acting | Transmission Box | 4x2x(1+1)Component type |
| Gearshift | Gear shift with engagement sleeve | Central Drive | Closed bevel gear type |
| Differential | closed planet pinion | Final Drive | Built - in, single stage straight gear cylindrical gear |
| Frame type | No frame | Front Tyre Size | 8.3-20 |
| Rear Tyre Size | 12.4-28 | Front Tyre Pressure (kPa) | |
| Rear Tyre Pressure (kPa) | Three Point Linkage Type | Rear three point suspension | |
| Hydraulic lift type | Tillage depth control | Height control, floating control | |
| methodHydraulic lift pump | Left gear pumpCB-F316 | Hydraulic output | / |
| PTO Type | Type I, rear mounted, semi- | PTO Splines Numbers | 8 |
| PTO Rev.(r/min) | 38 | Outer Dia. Of PTO Spline（mm） | 540/1000 |
| Max. Lifting Force (kN) | 13.6 |
